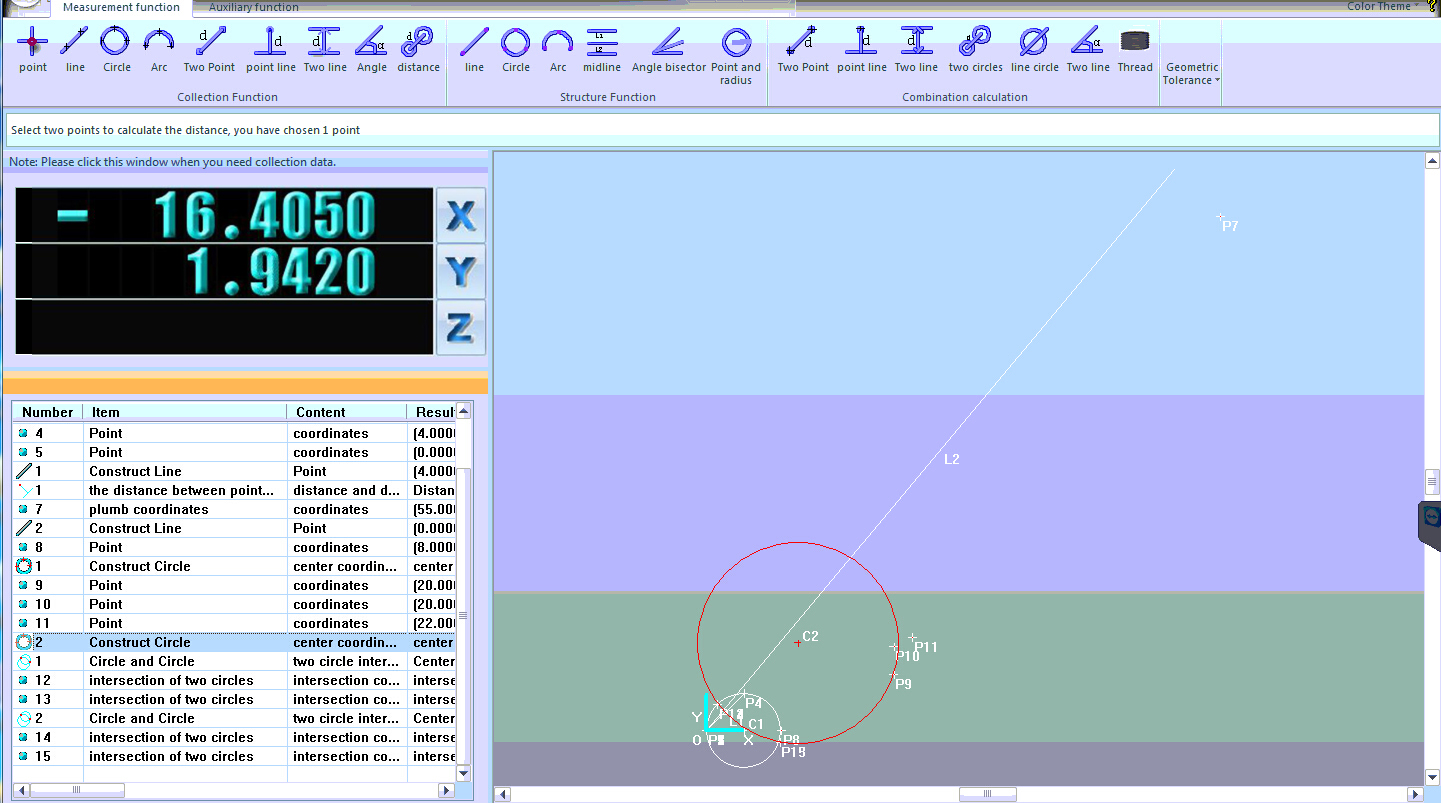

2D Profile Projector Software
2D Profile Projector Software fits profile projectors and toolmaker microscopes with RS232 port. It measures points, lines, circles, arcs, ellipses and auto recognizes graphics, with coordinate shift, axis correction and element combination. It exports DXF for AutoCAD and data to Excel, supports Chinese/English switch and program recording. It provides geometry construction, coordinate adjustment and graphic editing. Compatible with Win7/10, it requires i3+ CPU, 2.5G-4G RAM, and supports serial, USB, PCI interfaces to work with Excel and AutoCAD.
Product Details
2D Profile Projector Software is suitable for the 2D measuring instruments such profile projector, tool-makers microscope with RS232 interface.
Specification:
● Measure the Point, Line, Circle, Arc and Ellipse feature with multi-point
● The functions of Axis-skew and coordinate-shift are very convenient
● The functions of element-combination can enhance the efficiency
● Save as *.dxf and edit in AutoCAD
● The data can be sent to Excel
● Shift between in English and Chinese
● Record, edit and run the program
Functions:
Element measure Can measure the Point, Line ,Circle, Arc, Angle
Can measure the rectangle with stated points
Can identify the Point, Line, Circle and the Arc automatically
Element construct Center Point, Point of intersection, Midpoint, Line, Circle, Angle
Element preset Point , Line ,Arc, Angle
Graph manage Coordinate move and cording skew ,any axis skew
Graph operation Zoom in ,Zoom out ,Move, Print, Select, Cancel select ,Delete
Hardware:
Operation system
Application i3CPU or more
2.5 G Memory-4G
Serial interface
USB interface
PCI slots
Windows win7,win 10,
Excel, AutoCAD
