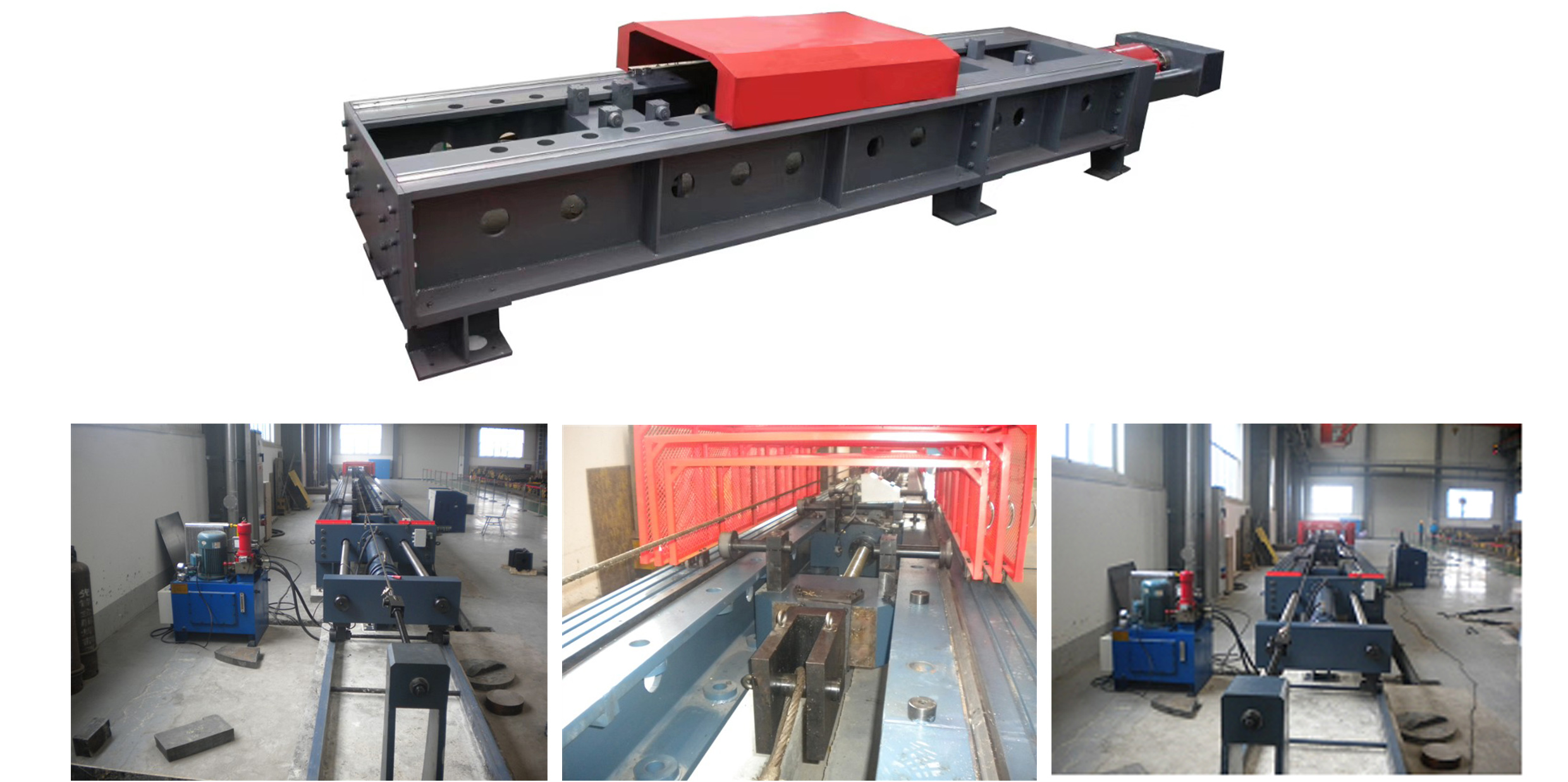

HWAW-600D Horizontal Tensile Test Machine
The HWAW-D Series Horizontal Tensile Test Machine is designed for testing various long and short samples, especially suitable for large-length specimens such as wire ropes, chains, shackles, cables, lifting belts, safety ropes and power fittings. Adopting computer control and hydraulic servo drive technology with a hydraulic single-pole bidirectional cylinder and high-precision spoke-type load sensor, it ensures smooth loading, accurate measurement and rapid response, supporting load and displacement (speed) control modes, full digital calibration, data and curve re-analysis, report printing, and full-load/position protection. Compliant with ASTM, ISO, EN, GB/T and other international and domestic standards, it offers optional force ranges from 300kN to 6000kN with ±1% force accuracy, 0.01mm displacement resolution, and selectable pull space from 3m to 20m to meet diverse testing requirements.
Product Details
Application:
HWAW-D Horizontal Tensile Test Machine, It is application, for a variety of long, short sample test, especially for large, long length sample. Common test types such as: wire rope, chain, shackle ,cable, lifting belt, safety rope tensile test, lifting belt, power fittings etc. tensile test. The machine adopting computer control, hydraulic servo drive, hydraulic single-pole bidirectional cylinder loading, precision spoke load sensor signal measuring force value, high accuracy sensor measurement displacement. Smooth loading, accurate measurement, rapid control response, can achieve load control and displacement (speed) control, a variety of curve form. Can choose (superposition or a single display), can easily and accurately achieve the load, displacement and other digital calibration and verification, with full load protection and position protection, test data can be accessed arbitrarily and can re-analyze data and curves, including local amplification and data re-editing, test methods can be programmed and stored or read, and print out the test reports and curves.
Test standard:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4,
GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT
3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430
etc.
Specification list:
|
model |
HWAW-600D |
|
max.force |
300kN /600KN/1000KN/2000KN 3000KN/6000KN(customization other force) selectable |
|
grade |
1 |
|
force range |
2%-100%FS |
|
force resolution |
1/500000 |
|
force accuracy |
±1% |
|
displacement resolution |
0.01mm |
|
displacement accuracy |
±0.5% |
|
deformation range |
1%-100%FS |
|
deformation resolution |
1/500000mm |
|
deformation accuracy |
±0.5% |
|
clamp |
be suited to wire rope / (customization other material) |
|
pull space |
3M-20Mmm selectable |
|
cylinder stroke space |
1500/2000mm |
|
wide |
600mm |
|
Height of work center |
350mm |
|
machine size(mm) |
LWH: LLx1600x500mm oil sources1200x680x750 |
|
power |
2.75KW 380V，50HZ or 220V/60HZ |
