PHT-530 Portable Hardness Tester
Product Details
Application:
PHT-530 is a small, light and portable hardness tester. It is most suitable for testing of heavy, big or outdoor metal parts. It can measure in any direction and also easy to be used and accurate on curved test surfaces. Especially, it can automatically compensate effect of weight which according to the test direction.
Feature:
◆ Menu operation, easy and convenient, 5 inch LCD display
◆ Key or touch type screen operation
◆ Automatic hardness conversion
◆ Large capacity rechargeable battery
◆ Attached printer can be used to print out testing result
◆ Automatic recognition for the type of impact device
◆ Automatic detecting the impacting direction
◆ The setup can be saved automatically
◆ Dual-operation both by keys or touch screen
◆ Automatic storage for 2000 groups of testing data
◆ uses wireless to communicate with printer, operates
with touch screen and test data could be linked into PC.
Standard: ASTM A956 & DIN 50156 (in preparation)
Specification:
|
MODEL |
PHT-530 |
|
HL display range |
170～960HLD |
|
Repeatability |
±6HLD |
|
Testing direction |
All direction |
|
Optional Impact Device |
D, DC, DL, D+15, C, G (automatic identification) |
|
Display |
5.0 inch 850*400 (touch colour screen), Bright and clear LCD display with back light |
|
Hardness conversion |
HRC, HRB, HB, HV |
|
Multi-language menu |
English, Chinese Traditional |
|
Power |
3.7V 1400 mAh(rechargeable li-ion battery) |
|
Charging power supply |
DC5.5V/1A |
|
Printer |
Wireless Mini-printer (Cable no needed) |
|
Operating environment Temperature |
-20°C～+50°C; Humidity:20%～85% |
|
Storage environment Temperature |
-30°C～+70°C; Humidity:5%～95% |
|
Dimensions |
150mm*85mm*27mm |
|
Weight |
260g (include D type impact device) |
|
Standard accessories |
Display Unit, Impact Device D, Test Block, Mini-printer, Charger, Little Support Ring, Cleaning Brush, USB Cable, Case. |
|
Options Impact Device |
DC; DL; D+15; C; G |

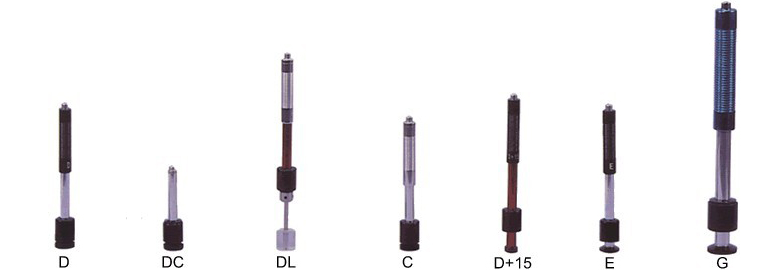

Impact probe assembly:
|
|
|||||
|
Type of Impact Device |
DC(D)/DL |
C |
D+15 |
E |
G |
|
Application |
DC type used to hole or inside face of cylinder, DL type used to elongated narrow slot or hole, D type for routine measurements. |
Suitable for measuring surface of the trench or concave. |
Suitable for measuring thin workpiece and harden surface. |
Suitable for heavy or rough castings and forgings. |
Suitable high hardness material. |
|
Impacting energy |
11mJ |
2.7mJ |
11mJ |
11mJ |
90mJ |
|
Mass of impact body |
5.5g/7.2g |
3.0g |
7.8g |
5.5g |
20.0g |
|
Test tip hardness: |
1600HV |
1600HV |
1600HV |
5000HV |
1600HV |
|
Dia. Test tip: |
3mm |
3mm |
3mm |
3mm |
5mm |
|
Material of test tip: |
Tungsten carbide |
Tungsten carbide |
Tungsten carbide |
synthetic diamond |
Tungsten carbide |
|
Impact device diameter: |
20mm |
20mm |
20mm |
20mm |
30mm |
|
Impact device length: |
86(147)/75mm |
141mm |
162mm |
155mm |
254mm |
|
Impact device weight: |
50g |
75g |
80g |
80g |
250g |
|
Max. hardness of sample |
940HV |
1000HV |
940HV |
1200HV |
650HB |
|
roughness of sample |
Ra 1.6μm |
Ra 0.4μm |
Ra 1.6μm |
Ra 1.6μm |
Ra 6.3μm |
|
Min. weight of sample: |
>5kg |
>1.5kg |
>5kg |
>5kg |
>15kg |
|
Measure directly with stand |
2～5kg |
0.5～1.5kg |
2～5kg |
2～5kg |
5～15kg |
|
Need coupling tightly |
0.05～2kg |
0.02～0.5kg |
0.05～2kg |
0.05～2kg |
0.5～5kg |
|
Min. thickness of sample |
5mm |
1mm |
5mm |
5mm |
10mm |
|
layer thickness hardening: |
≥0.8mm |
≥0.2mm |
≥0.8mm |
≥0.8mm |
≥1.2mm |
|
Indentation size: |
||||||
|
Type of Impact Device |
DC(D)/DL |
C |
D+15 |
E |
G |
|
|
Hardness 300HV |
Indentation diameter: |
0.54mm |
0.54mm |
0.38mm |
1.03mm |
0.54mm |
|
Depth of indentation: |
24μm |
24μm |
12μm |
53μm |
24μm |
|
|
Hardness 600HV |
Indentation diameter: |
0.54mm |
0.54mm |
0.32mm |
0.90mm |
0.54mm |
|
Depth of indentation |
17μm |
17μm |
8μm |
41μm |
17μm |
|
|
Hardness 800HV |
Indentation diameter: |
0.35mm |
0.35mm |
0.35mm |
-- |
0.35mm |
|
Depth of indentation |
10μm |
10μm |
7μm |
-- |
10μm |
|
