SCT-100FN Coating Thickness Gauge
SCT-100FN digital coating thickness gauge adopts magnetic induction and eddy current dual testing principles, configurable with three interchangeable probes (F1, N1, F10): F1/F10 work for magnetic ferrous substrates like iron & steel to test non-magnetic paint/enamel coatings, N1 adopts vortex mode for non-ferrous base such as copper, aluminum to measure insulating coating; its standard measuring range is 0~1250μm with 0.1μm resolution, while optional F10 probe expands measuring range up to 0~10000μm; the device features OLED backlit display, built-in data memory for 5 groups ×99 readings, anti-interference metal housing and over-limit alarm function, widely used for coating thickness inspection in machinery, chemical industry and commodity detection.
Product Details
The SCT-100FN Digital Coating Thickness Gauge adopts single-chip technology, with high precision, high brightness screen, digital display, stable indication, sensitive response, low power consumption, simple and convenient operation, no calibration knob, single probe full scale measurement, small size and light weight. The instrument can be widely used in the fields of manufacturing, metal processing, chemical industry, commodity inspection and other testing. It can be used in both laboratories and engineering sites.
The SCT-100FN Digital Coating Thickness Gauge is capable to measure thickness of non-magnetic coating layers (aluminum, chrome, copper, enamel, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel), also can measure thickness of non-conductive coatings layers (enamel, rubber, paint, plastic) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel)
Features:
● Various probes optional, probe auto matching;
● Durable ruby probe, more wear and precise;
● Full metal shell design, sturdy, portable, high reliability;
● Alarm function when overrun the settable limiting range;
● Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy;
● Large storage, easy to delete single or multiple saved values;
● PC software optional, convenient the data transmission, analysis, printing etc.
● Split design, easy to operate
● Metal body, anti-magnetic anti-magnetic interference
● OLED Digital Display
● High-precision, big screen
Technical Specification:
|
Measuring Range |
Standard 0~1250μm (with probe F1 N1） (MAX 10000μm optional probe F10) |
|
Resolution |
0.1μm/1μm |
|
Working Principle |
Magnetic & Eddy |
|
Substrate |
FE / NFe base, depends on probes |
|
Accuracy |
±2%H+1μm Note: H is thickness reading |
|
Display |
128x64 LCD with backlight |
|
Memory |
5 files x 99 values |
|
Unit Switch |
Metric (μm) Imperial (mil) |
|
Working Temperature |
Operation Temp. :-10°C~50°C Storage Temp. :-30°C-70°C |
|
Power |
AA battery 2pcs (Non-aviation transport) |
|
Size |
125x67x31mm |
|
Weight |
340g |

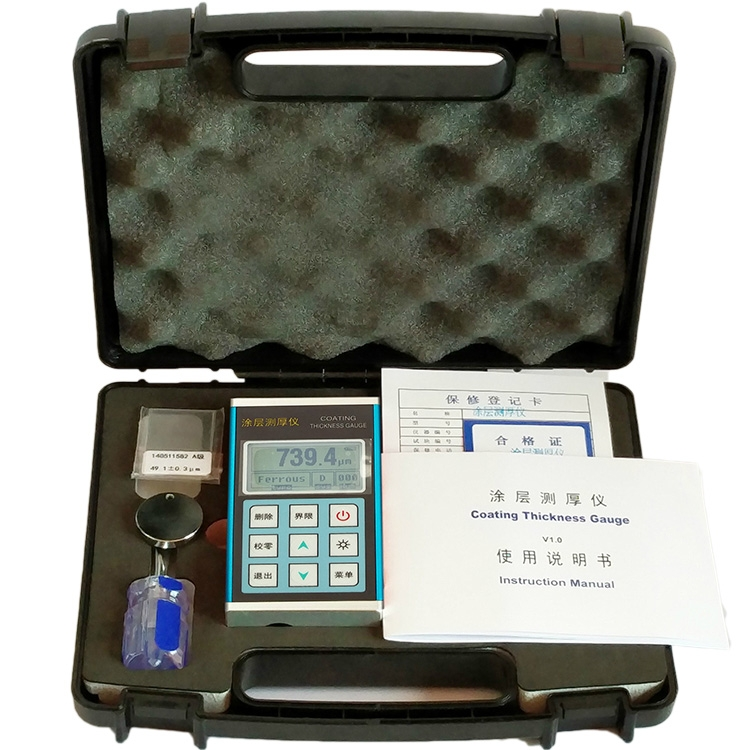

Standard Delivery:
|
NO. |
NAME |
Q'TY |
|
NO. |
NAME |
Q'TY |
|
1 |
SCT-100FN Host |
1 |
|
6 |
NFe Substrate |
1 |
|
2 |
F1 Probe |
1 |
|
7 |
User Manual |
1 |
|
3 |
N1 Probe if dual-purpose main unit |
1 |
|
8 |
block bracket |
1 |
|
4 |
Standard Calibration Piece |
1 |
|
9 |

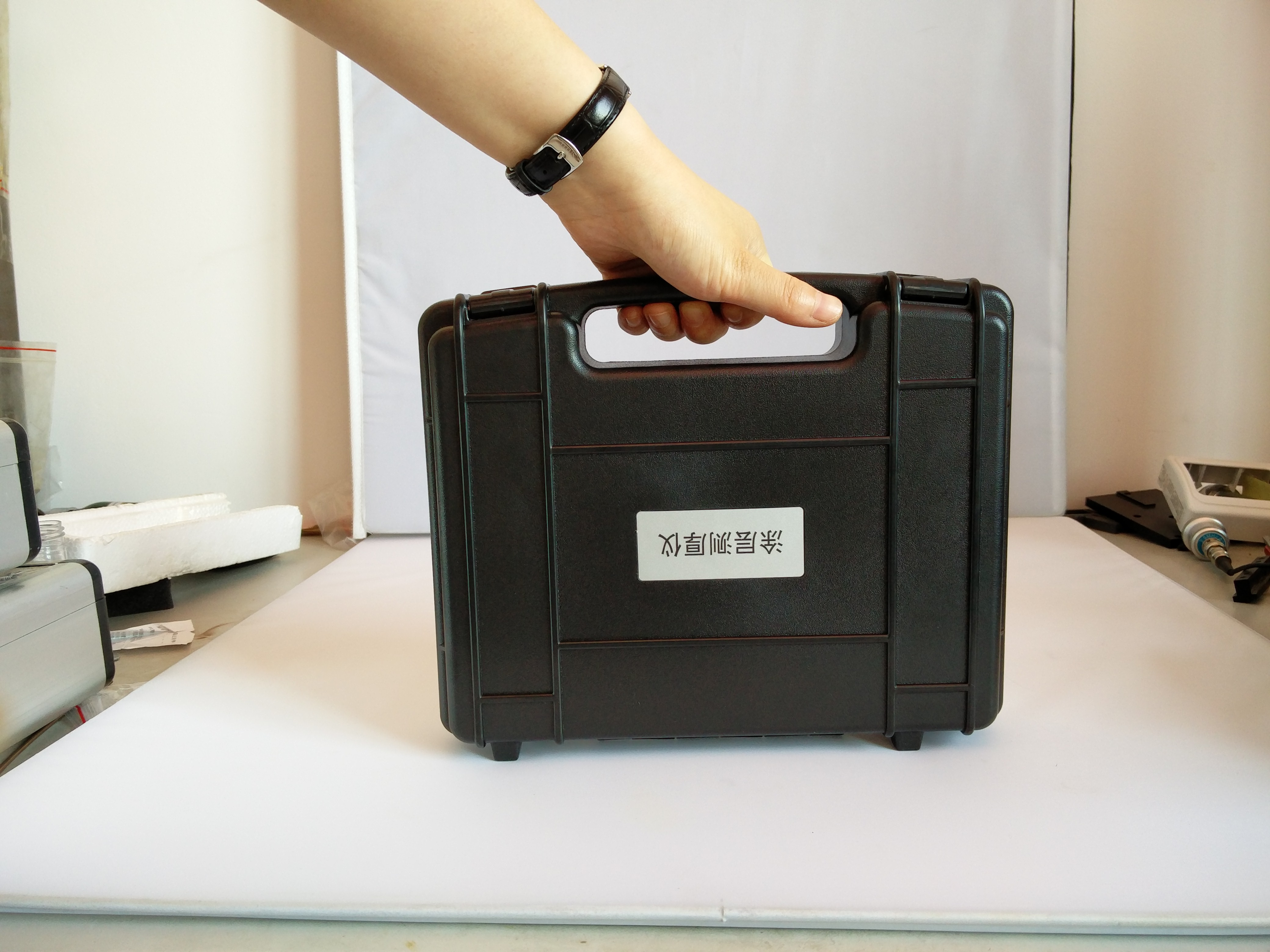

Instrument Case |
1 |
|
5 |
Fe Substrate |
1 |
|
|
|
|
|

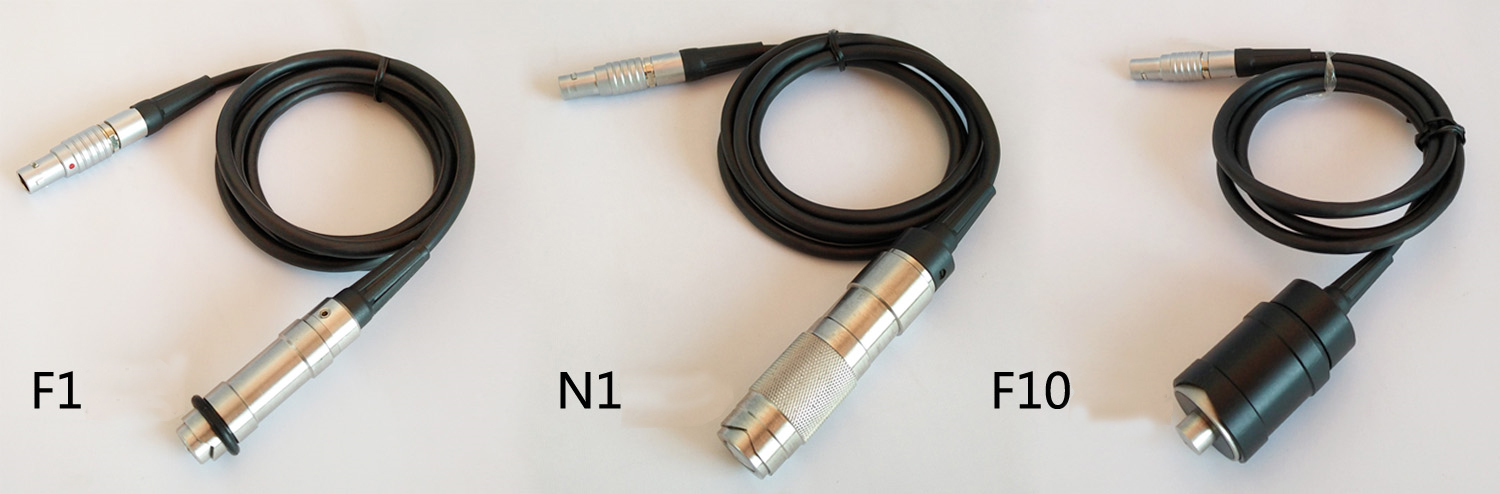

Probe model |
F1 |
F10 |
N1 |
|
|
Work type |
magnetic induction |
vortex |
||
|
Measure base |
Magnetic metals such as iron and steel |
Non-magnetic metal matrix (such as copper, aluminum, zinc, tin, etc.) |
||
|
Measure costing |
Organic materials and other non-magnetic coatings (e.g.: paints, paints, enamels, enamels, plastics and anodizing, etc.) |
Non-conductive coating (e.g.: enamel, rubber, paint, plastic, etc.) |
||
|
Measuring range(mm) |
0～1250 |
0～10000 |
0～1250 |
|
|
resolution(mm) |
0.1 |
10 |
0.1 |
|
|
Value Error |
Point (mm) |
±(3%H+1) |
±(3%H+10) |
±(3%H+1.5) |
|
Two point(mm) |
±((1～3)%H+1) |
±((1～3)%H+10) |
±[(1～3)%H+1.5] |
|
|
Working Condition |
Min. radius curvature (mm) |
1.5 |
10 |
3 |
|
Min. area(mm) |
φ7 |
φ40 |
φ5 |
|
|
Base thickness(mm) |
0.5 |
2 |
0.3 |
|
